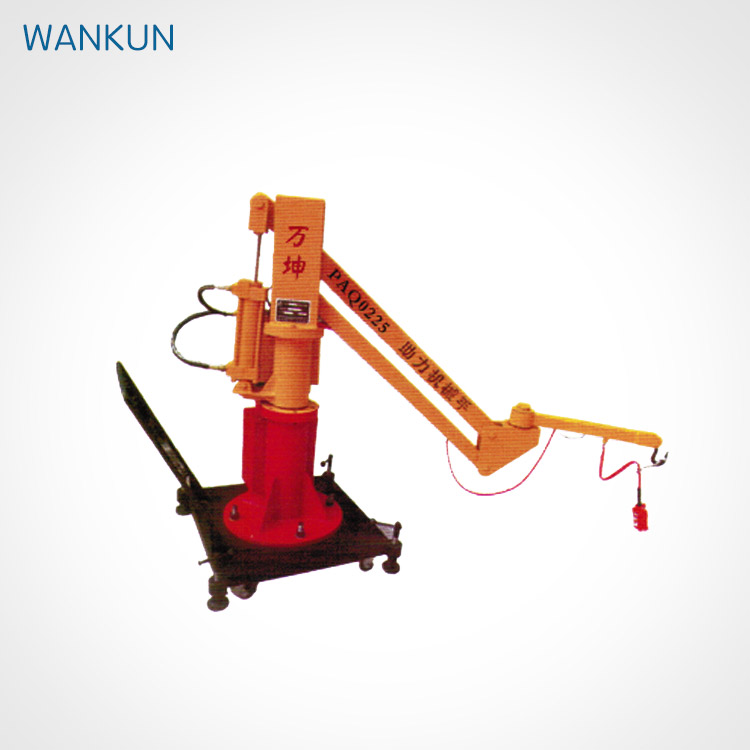

We are PAQ pneumatic balance crane manufacturer, Pneumatic balance lifting material handling system combined with our company design, manufacture of various materials grasping fixture, can complete a large area of material handling, assembly and special positioning work.
Main technical parameter
Project | PAQ | |||
0125 | 0225 | 0325 | 0425 | |
Rated lifting weight（kg） | 100 | 200 | 300 | 400 |
Minimum working radius（mm） | 620 | 800 | ||
Maximum working radius(mm) | 2500 | |||
Starting altitude（mm） | 400 | |||
Maximum lifting height(mm) | 2000 | |||
Rotation angle (°) | 345 | |||
Lifting speed(m/min) | 4-6 | |||
Working pressure | 0.1-0.7Mpa | |||
