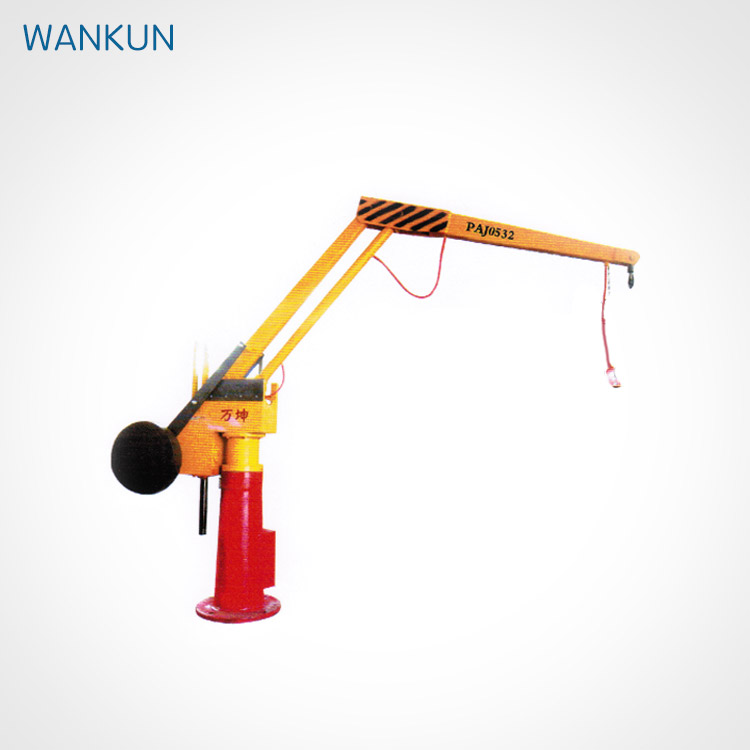

We are PAJ Mechanical balancing crane manufacturer, Balance lifting is a new type of material lifting equipment, it uses a unique spiral lifting mechanism to lift heavy objects, instead of human labor to reduce the labor intensity of mechanical equipment.
Main technical parameter
Project | PAJ | |||||
0125 | 0225 | 0325 | 0425 | 0532 | 0632 | |
Rated lifting weight（kg） | 100 | 200 | 300 | 400 | 500 | 600 |
Minimum working radius（mm） | 770 | 1100 | ||||
Maximum working radius(mm) | 2500(3200) | 3200 | ||||
Starting altitude（mm） | 500 | |||||
Maximum lifting height(mm) | 2000(2500) | 2000(2500) | ||||
Rotation angle (°) | 345 | |||||
Lifting speed(m/min) | 4-6 | |||||
Total Height H(mm) | 2700 | 2800 | 3700 | |||
Note: the above parameters are the standard parameters of the mechanical balancing crane, but also can be customized according to the specific needs of customers.
