We are manipulator manufactuer, Effectively improve the production environment, reduce manufacturing costs.

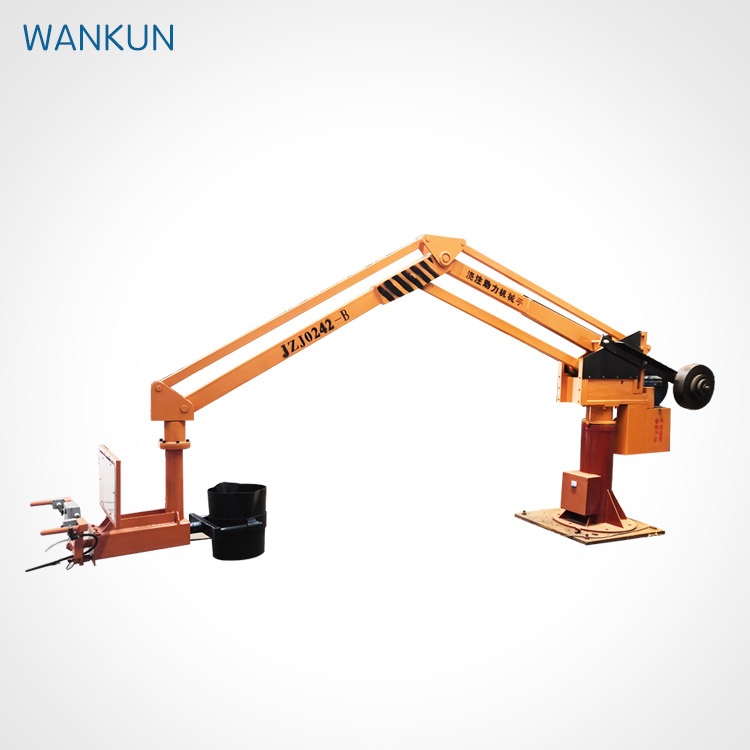

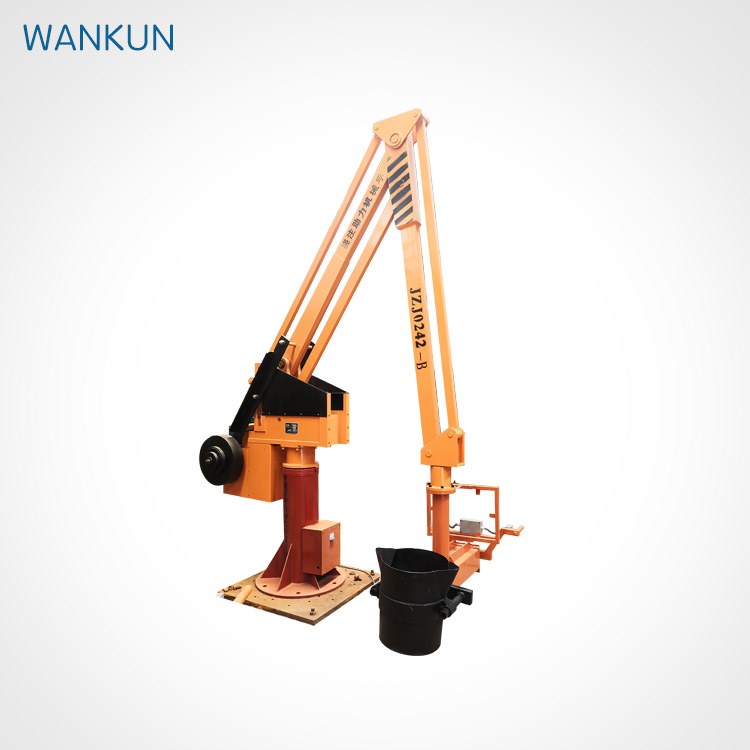

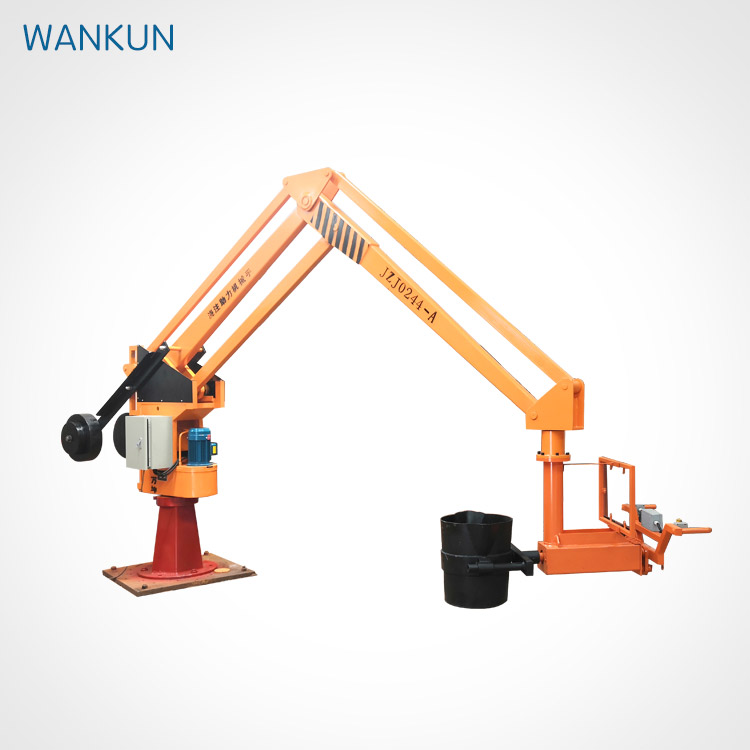

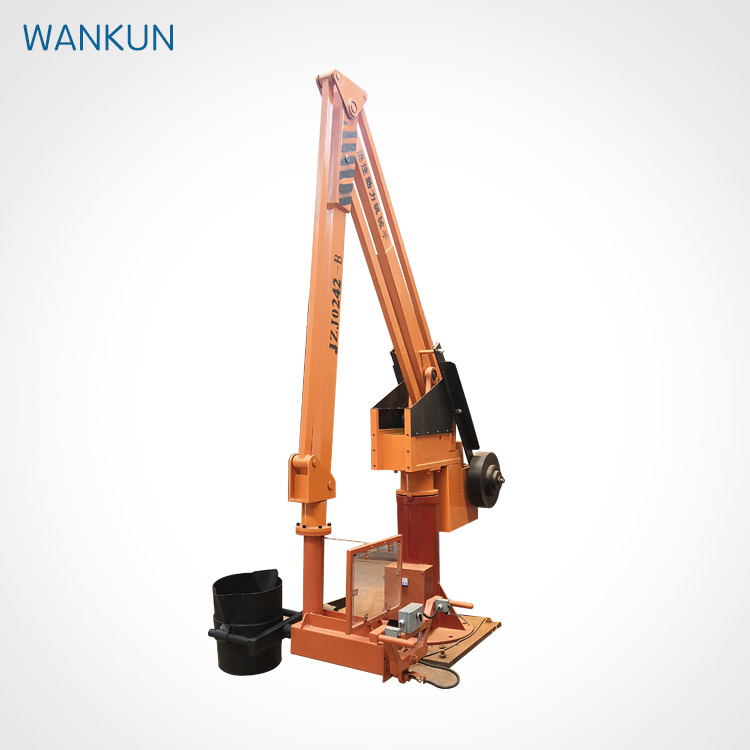

Features of pouring manipulator:
1, the product is especially suitable for small and medium-sized casting production enterprises, such as cast steel, cast iron, as well as copper, aluminum, zinc, lead and other alloy precision casting.
2, save manpower cost, originally need two people pouring operation, now only need a single operation can be easily completed, greatly improve the production efficiency.
3, convenient operation, flexible use, time-saving, labor-saving, reduce the labor intensity of workers.
4. In the process of pouring, the quality of molten iron ladle changes, and the manipulator is still in a good balance.
5, the whole casting process is easy, fast, coherent casting, accurate positioning, effectively prevent pouring liquid splash, reduce loss, reduce the injury to workers.
6, high efficiency, good safety performance, short pouring cycle, can greatly reduce the cost of casting.
Main technical parameters
Project | Product Model | ||||||
0135 | 0235 | 0335 | 0435 | 0535 | |||
Rated lifting weight（kg） | 100 | 200 | 300 | 400 | 500 | ||
Minimum working radius（mm） | 3500 | ||||||
Maximum lifting height（mm） | 1300（1500） | ||||||
Rotation angle （°） | 345 | ||||||
Lifting speed（m /min） | 4-8 | ||||||
Total Height H（mm） | 3850 | 3700 | 4000 | ||||
