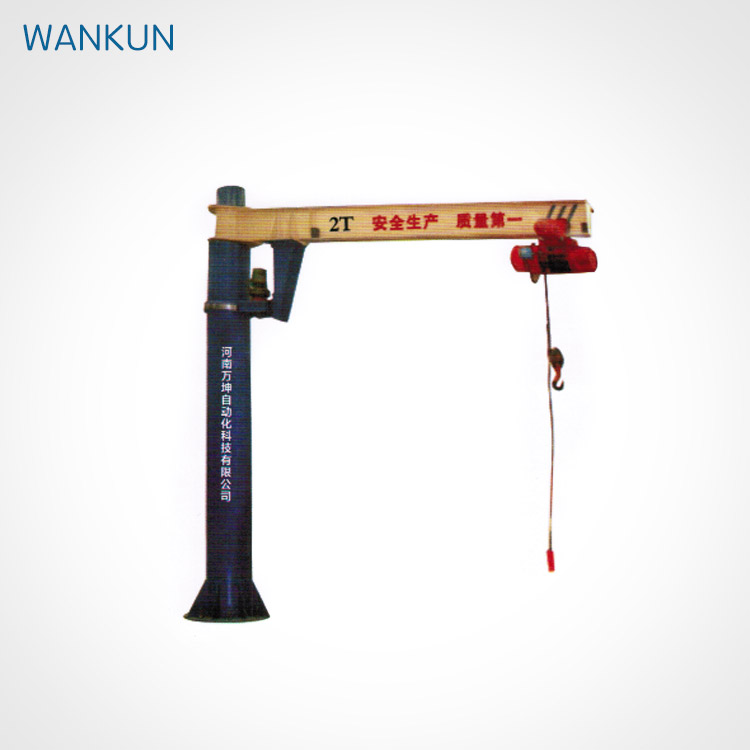

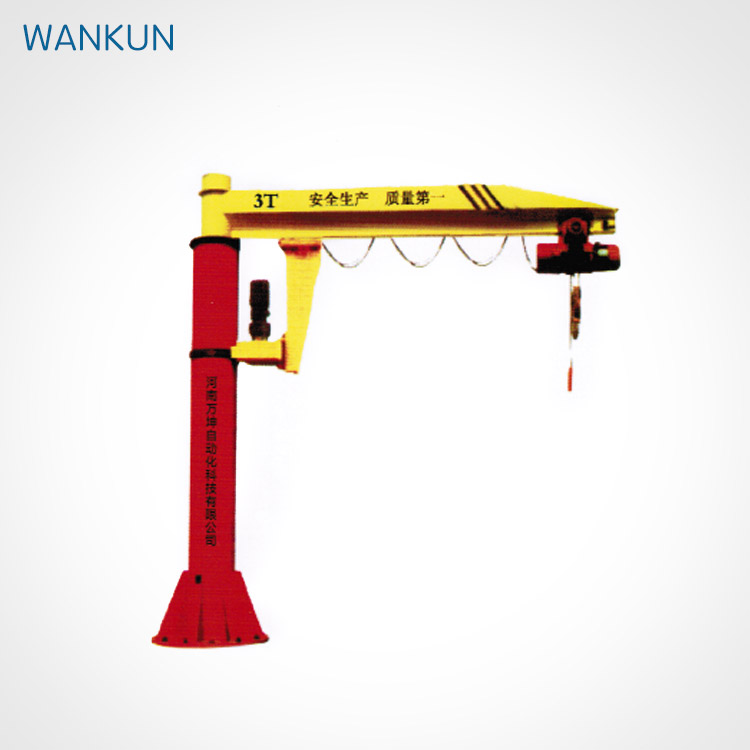

We are BZD Fixed column type rotary jib crane manufactuer, Professional production of Jib crane, my company set design, research and development, sales as one.
Main technical parameters
Type | BZ0.25 | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 |
Rated lifting weight（t） | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
lift height（m） | 3 | |||||
Effective radius | 4 | 3 | ||||
Height from the working ground to the lower side of the rotary arm (m) | 3.7 | 4 | ||||
Hoisting speed of wire rope electric hoist(m/min) | 8 | |||||
Horizontal running speed(m/min) | 20 | |||||
Rotating speed (r/min) | 0.5-1 | |||||
Rotation angle (°) | 180°，270°，345°，360°，Any angle | |||||
